Alkin Reverse Osmosis Plants are designed and built to deliver water suitable for diverse utilization purposes and various industrial process requirements. They are ideal for small hotels, schools/ institutions, nursing homes, commercial establishments and light industries.
Inclusive of all taxes • Free Shipping
100 LPH Industrial RO Plant for Commercial and Institutional Use

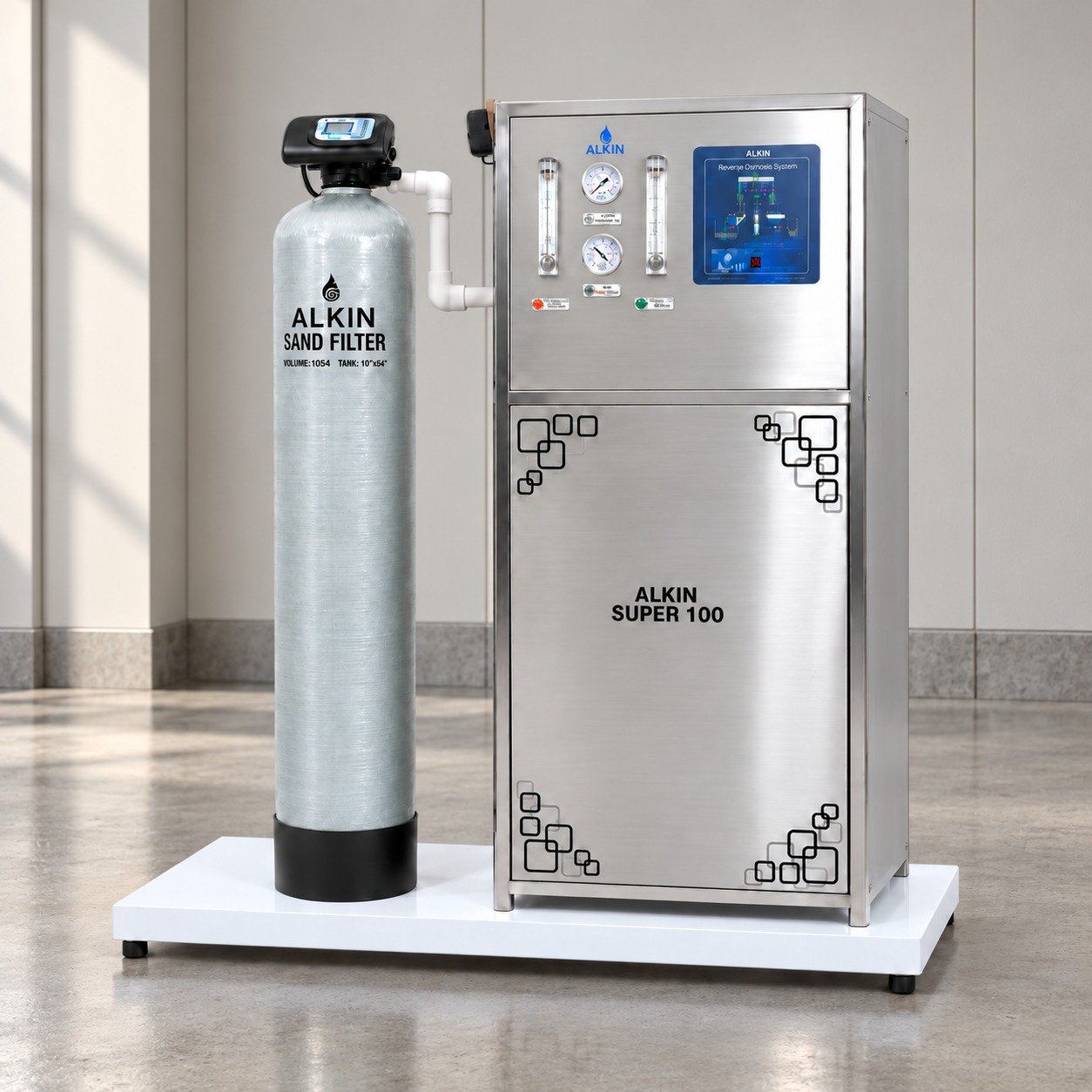

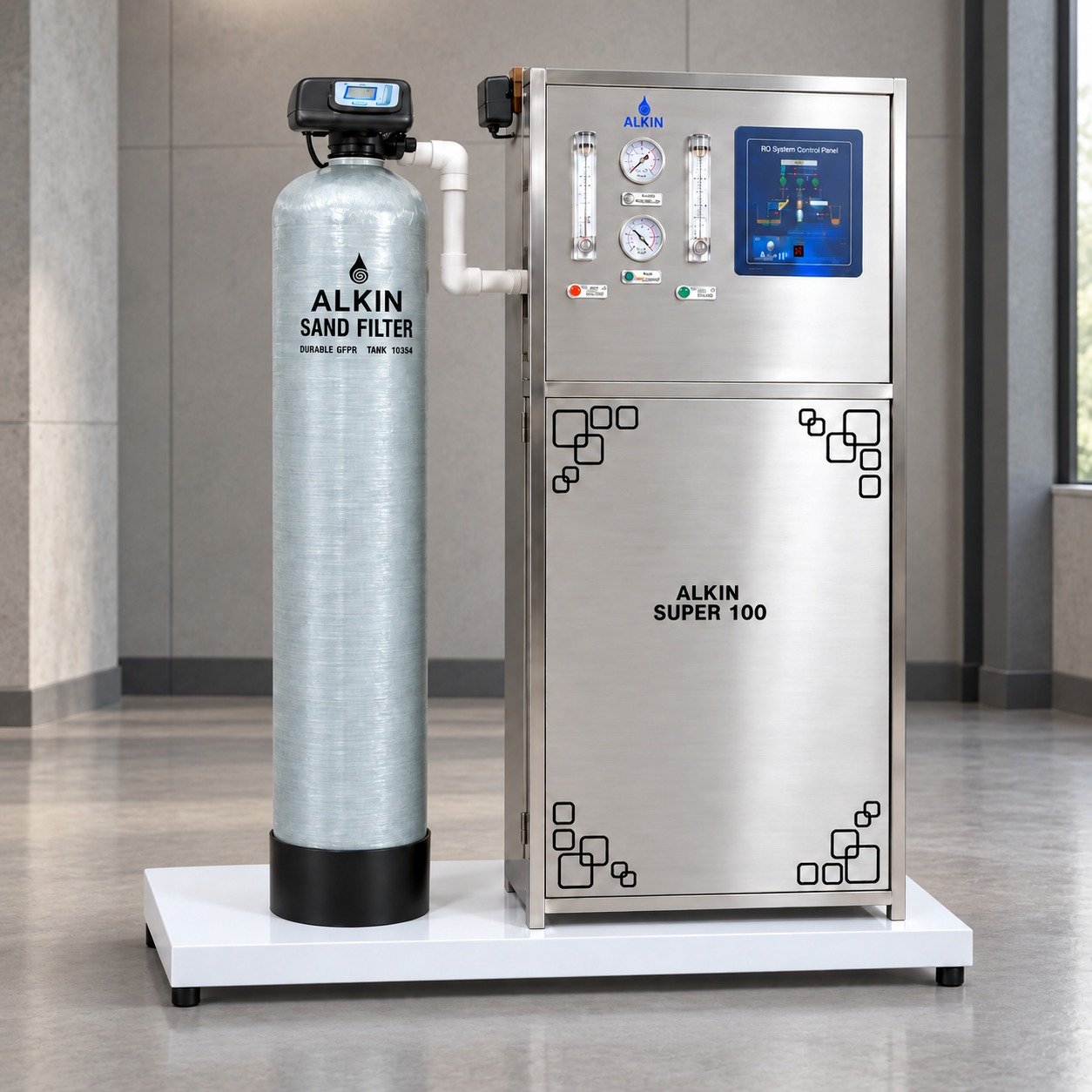

ALKIN Super 100 is an industrial reverse-osmosis plant designed for small hotels, schools, institutions, nursing homes, commercial establishments and light industries.
The supplied technical specifications list a maximum and average flow of 100 litres per hour, inlet TDS up to 1500 mg/L and permeate TDS below 150 mg/L.
The plant includes particulate filtration, activated carbon, antiscalant dosing, a micron cartridge filter, a high-pressure pump and a 4 × 40-inch RO membrane.
It is supplied as a completely assembled, pre-piped and pre-wired plant with microprocessor-based control, pressure protection and standard instrumentation.
Suitable for drinking-water and appropriate service requirements.
Supports shared daily purified-water demand.
Can support suitable pantry, staff and common-area water use.
Designed for regular business water requirements.
Can be used for suitable process and utility-water applications.
Supports centralised purified-water supply for employees.
Hardness
200–500 ppm
Alkalinity
200–300 ppm
Chlorides
300–400 ppm
Raw-Water TDS
500–2000 ppm maximum in the narrative section
Technical Inlet TDS
500–1500 mg/L maximum in the operating table
Water Testing
A source-water analysis is recommended before final configuration
Less than 5 NTU.
Less than 0.3 ppm.
Less than 1 ppm.
Nil according to the supplied limit.
Additional pretreatment may be required if raw water exceeds limits.
Plant setup should be based on laboratory water analysis.
Operation can start or stop according to the connected tank water level.
The control panel includes built-in process logic for easier operation.
An MCB is included for plant electrical protection.
Low- and high-pressure switches protect the high-pressure pump.
The raw-water pump is described as integrated with the plant.
The plant is supplied assembled, pre-piped and pre-wired.
The plant is built around an industrial skid arrangement rather than a compact domestic purifier body.
Its supplied dimensions are 600 mm in length, 800 mm in width and 1640 mm in height. The approximate listed weight is 200 kg.
A stable floor area, service clearance, drainage and suitable three-phase electrical infrastructure are required.
Pressure Gauges
Used for system-pressure monitoring
Level Switch
Supports automatic start and stop logic
Rota Meter
Measures permeate-water flow
Conductivity Meter
Supports permeate-quality monitoring
Pressure Switches
Protect the high-pressure pump
Control Panel
Microprocessor-based process control
Available as an optional premium feature.
Optional dosing or correction arrangement.
Optional post-treatment upgrade; not standard in the technical table.
Optional cleaning arrangement for applicable plant requirements.
Optional final conditioning based on required water quality.
Optional remote system monitoring and management.
Model
ALKIN SUPER 100 / RO-100
Maximum Flow
100 LPH
Average Flow
100 LPH
Inlet TDS
500–1500 mg/L maximum in operating table
Permeate TDS
Below 150 mg/L
Recovery
20%
Particulate Filter
10 micron, 4 × 20 inches
Activated Carbon Block
4 × 20 inches
Antiscalant Dosing
Yes
Dosing Tank
20 litres
Micron Cartridge
5 micron PP, 20 inches long
High-Pressure Pump
1000 LPH, 1.1 kW
RO Membrane
4 × 40 inches
Standard UV
No, according to technical table
Plant Dimensions
600 × 800 × 1640 mm
Approximate Weight
200 kg
Power Supply
415 V AC, 3 phase, 4 wire, 50 Hz
Plant Format
Assembled, pre-piped and pre-wired
The technical table lists both maximum and average flow as 100 LPH.
The operating table lists 500–1500 mg/L maximum, while another section mentions up to 2000 ppm.
The supplied technical table lists permeate TDS below 150 mg/L.
The technical table lists 20% recovery.
No. The technical table lists UV as “NO.” Post UV is listed as an optional feature.
The listed membrane size is 4 × 40 inches.
A 1000 LPH, 1.1 kW high-pressure pump is listed.
Yes. It includes a dosing system and 20-litre dosing tank.
The listed dimensions are 600 × 800 × 1640 mm.
The supplied specification lists approximately 200 kg.
415 V AC, three phase, four wire and 50 Hz.
Yes. It is described as operating according to the connected tank water level.
Pressure gauges, level switch, rota meter, conductivity meter and pressure switches.
Remote monitoring is listed as an optional feature.
Yes. It is listed as an optional premium feature.
Yes. Final pretreatment and dosing should be based on raw-water analysis.
