Alkin Reverse Osmosis Plants are designed and built to deliver water suitable for diverse utilization purposes and various industrial process requirements. They are ideal for small hotels, schools/ institutions, nursing homes, commercial establishments and light industries.
Inclusive of all taxes • Free Shipping
200 LPH RO System for Commercial, Institutional and Light-Industrial Use

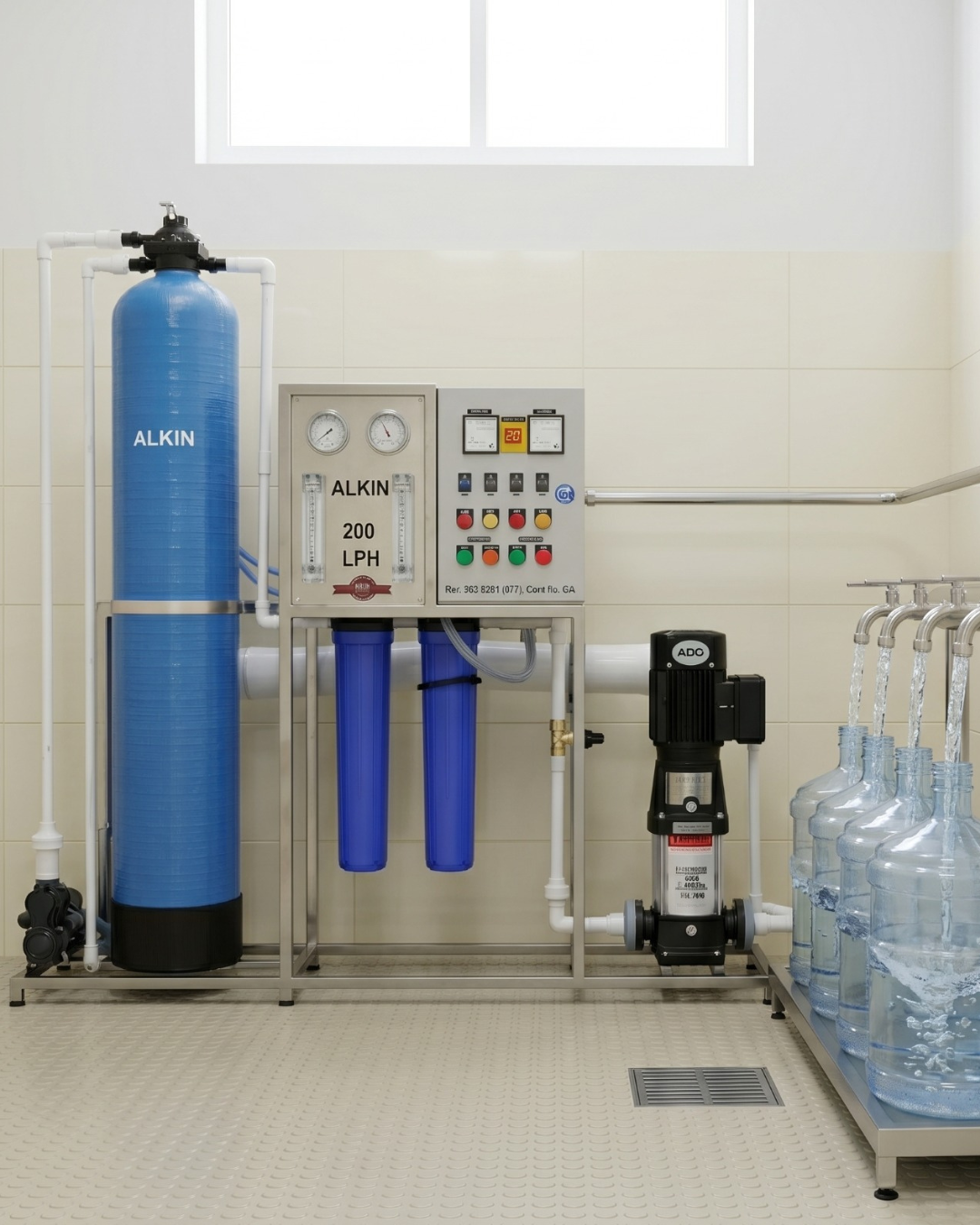

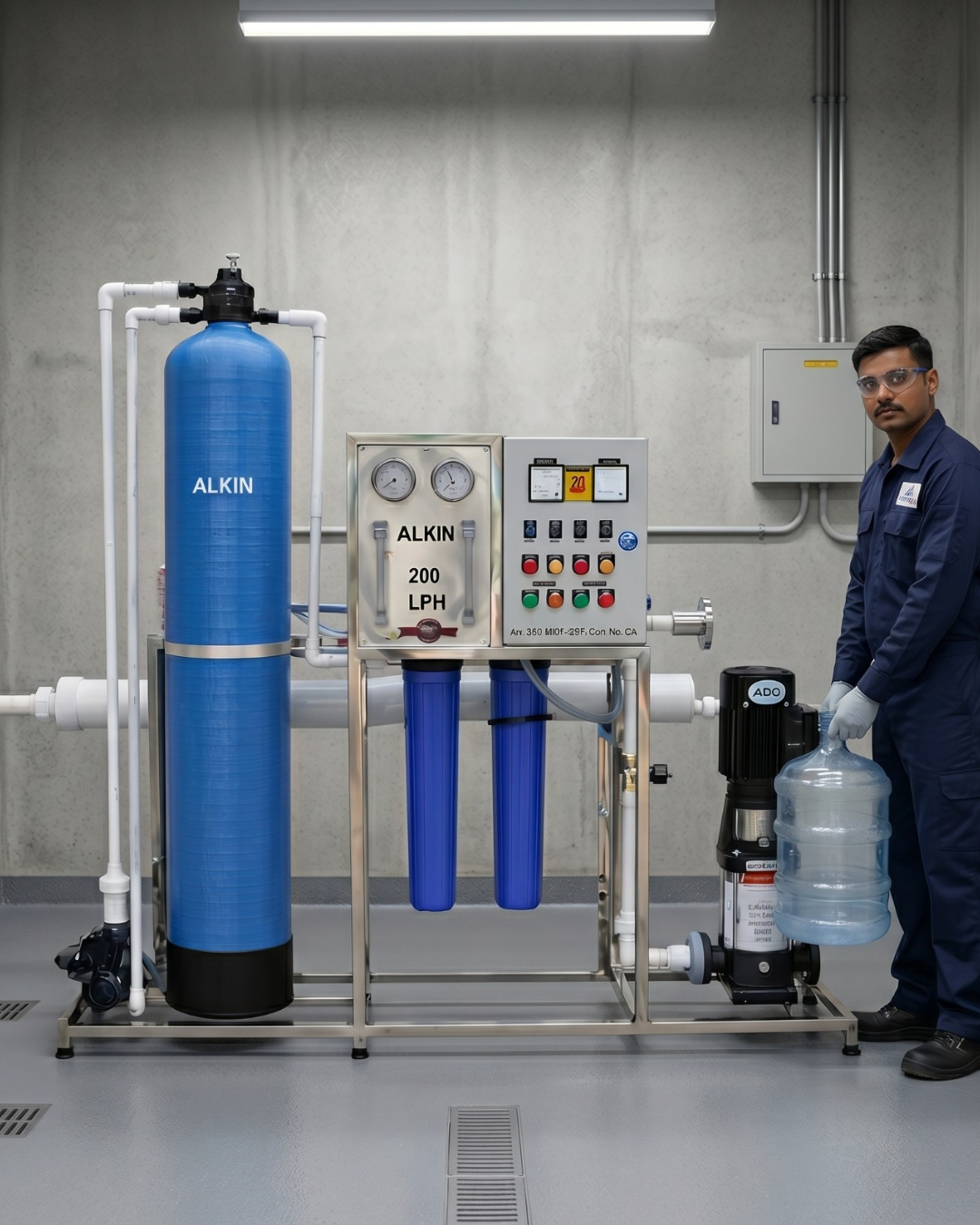

ALKIN Super 200 is a reverse-osmosis plant designed for small hotels, schools, nursing homes, commercial establishments and light industries.
The supplied specifications list a maximum and average flow of 200 litres per hour, inlet TDS from 500 to 1500 mg/L and a recovery rate of 20%.
The plant includes a 10-micron particulate filter, activated carbon block, antiscalant dosing system, 5-micron PP cartridge, 1.1 kW high-pressure pump and a 4 × 40-inch RO membrane.
With dimensions of 600 × 800 × 1640 mm and an approximate weight of 200 kg, the system requires professional installation and suitable three-phase electrical infrastructure.
Supports suitable drinking, pantry and facility water requirements.
Provides centralised purification for staff and students.
Can support suitable pantry and shared-facility requirements.
Designed for businesses with consistent purified-water demand.
Can support suitable utility and process-water applications.
Supports shared purified-water systems for employees and visitors.
The treatment arrangement begins with a 10-micron particulate filter designed to reduce suspended particles before water reaches the next stages.
A 4 × 20-inch activated carbon block supports chlorine and organic-compound reduction, while a 5-micron PP cartridge adds a finer filtration stage before the RO membrane.
The listed high-pressure pump has a 1000 LPH rating and 1.1 kW power.
The supplied specification lists a 4 × 40-inch RO membrane.
UV is listed as “No” in the technical specification and is not shown as a standard feature.
The listed recovery rate is 20%. Recovery represents the proportion of feed water converted into permeate under the plant's operating configuration.
Actual flow and recovery can vary according to raw-water chemistry, pressure, temperature, membrane condition and system maintenance.
Requires a suitable linear installation area.
Additional side clearance should remain available.
Verify vertical clearance before installation.
Install on a stable and load-bearing floor.
Designed for dedicated plant-room or utility-area placement.
Maintain access for filters, pump and membrane servicing.
The plant requires a 415 V AC, three-phase, four-wire, 50 Hz electrical supply according to the supplied specification.
Electrical installation, earthing, protection and commissioning should be completed by qualified professionals.
Specifications are presented in equal-width cards so the complete page width is used without a stretched table column.
Model
ALKIN SUPER 200 / RO-200
Maximum Flow
200 LPH
Average Flow
200 LPH
Inlet TDS
500–1500 mg/L maximum
Recovery
20%
Particulate Filter
10 micron, 4 × 20 inches
Activated Carbon Block
4 × 20 inches
Pressure Sand Filter
Not listed
Activated Carbon Filter
Not listed as a separate vessel
Antiscalant Dosing
Yes
Dosing Tank
20 litres
Micron Cartridge
5-micron PP, 20 inches long
High-Pressure Pump
1000 LPH, 1.1 kW
RO Membrane
4 × 40 inches
UV
No
Plant Dimensions
600 × 800 × 1640 mm
Approximate Weight
200 kg
Power Supply
415 V AC, 3 phase, 4 wire, 50 Hz
Designed for small and medium commercial water demand.
Listed recovery under the specified operating setup.
Includes particulate, carbon and micron-cartridge filtration.
Supports membrane scale-management requirements.
Provides high-pressure feed to the RO membrane.
Uses the listed industrial RO membrane size.
Designed for utility-area and plant-room installation.
Uses 415 V AC industrial electrical supply.
Relevant for hospitality, education, healthcare and light industry.
The maximum and average listed flow is 200 LPH.
The supplied specification lists 500–1500 mg/L maximum.
The technical specification lists 20% recovery.
A 10-micron, 4 × 20-inch particulate filter is listed.
A 4 × 20-inch activated carbon block is listed.
Yes. A dosing system and 20-litre tank are listed.
A 5-micron PP cartridge, 20 inches long, is listed.
The listed pump is 1000 LPH and 1.1 kW.
The listed RO membrane size is 4 × 40 inches.
No. UV is listed as “No” in the technical specification.
The listed dimensions are 600 × 800 × 1640 mm.
The supplied specification lists approximately 200 kg.
415 V AC, three phase, four wire and 50 Hz.
Yes. The plant requires professional industrial installation.
Yes. Flow and recovery depend on feed-water conditions, pressure and maintenance.
It is presented for hotels, schools, nursing homes, commercial sites and light industries.
